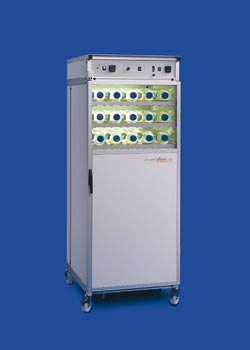

l compact incubation / roller device for 90 bottles

l energy-saving

l mobile on castors

l limited cross-contamination

l max. 2 hours heating time

l CO 2 version (optional)

For use in production, eg of vaccines with adherent cell cultures.

The system consists of an incubator and a drive mechanism for rolling 90 cell culture bottles with diameter of 100 to 120 mm and 270 mm length, in 9 levels of 5 bottles side by side, in 2 rows behind each other.

the speed of a cell culture flask with 120 mm diameter continuously adjustable between 0.1 and 2 U / min.

for the preliminary cultures and for the main crops only the incubator delivered is heated. Results in considerable energy savings compared to the operation of large breeding areas. The temperature range of the incubator is from

+ 5 ° C above ambient to + 50 ° C; infinitely adjustable.

With overtemperature protection.

The INCUDRIVE 90 is rollable and therefore mobile. Production can be adapted by purchasing new equipment to an increased demand. Methods can

be established a INCUDRIVE 90 and later be extended to the time necessary for the production number of devices (scale up). Increased production safety - faults remain on the affected incubator limited.

An interface for temperature monitoring is available (quality assurance).

Optional suitable for CO 2 OPERATION 0-10%. Consumption 2 kg per day.

The Bottle Lifter (optional) can be the INCUDRIVE 90 seconds to load and unload. The device is mobile and sterilizable. It is used for spatially connecting production and harvesting, thereby minimizing the risk of cross-contamination.



Specifications



Ball bearing drive

Number of revolutions:

0.1 to 2 U / min

Temperature stability:

<+/- 1 ° C

Temperature range:

+ 5 ° C to + 50 ° C above ambient temperature

Overall dimensions (W x H x D): 800 x 1,950 x 950 mm

Material tube / vessel diameter: 55-130 mm

Power requirements:

230 V, 50-60 Hz, 1300 W or

115 V, 50-60 Hz, 1300 W

Weight: approx 260 kg
