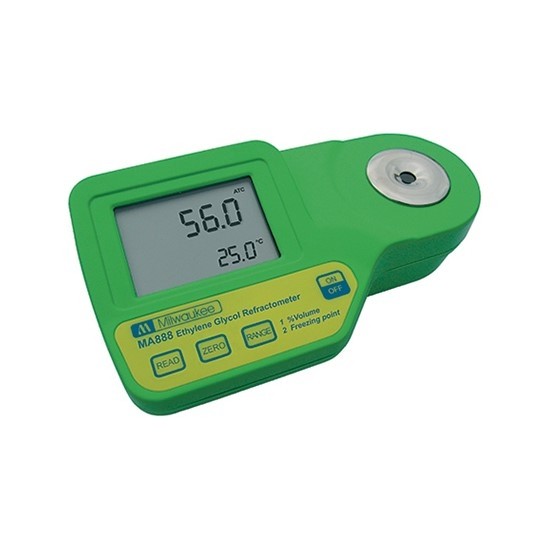

Digital Refractometer for Ethylene Glycol Measurements

Includes

9 V battery

Instruction manual

The MA888 is an optical instrument that employs the measurement of the refractive index to determine the % volume and freezing point of ethylene glycol based coolants or antifreeze. The digital refractometer eliminates the uncertainty associated with mechanical refractometers and is easily portable for use in the field to optimize your cooling system.

The MA888 refractometer is an optical device that is simple and quick to use. Samples are measured after a simple user calibration with steam distilled water (starter bottle provided with your unitdeio). Within seconds, the refractive index and temperature are measured and converted into one of two measurement units; % Volume or Freezing Point. The instrument utilizes internationally recognized references for unit conversion and temperature compensation for ethylene glycol solutions (e.g. CRC Handbook of Chemistry and Physics, 87th Edition).

The temperature (in °C or °F) is also displayed on the large dual level display along with helpful message codes.

Features

Waterproof models offers IP65 waterproof protection

Automatic Temperature Compensation (ATC)

Battery operation with Low Power indicator

Automatically turns off after 3 minutes of non-use.
